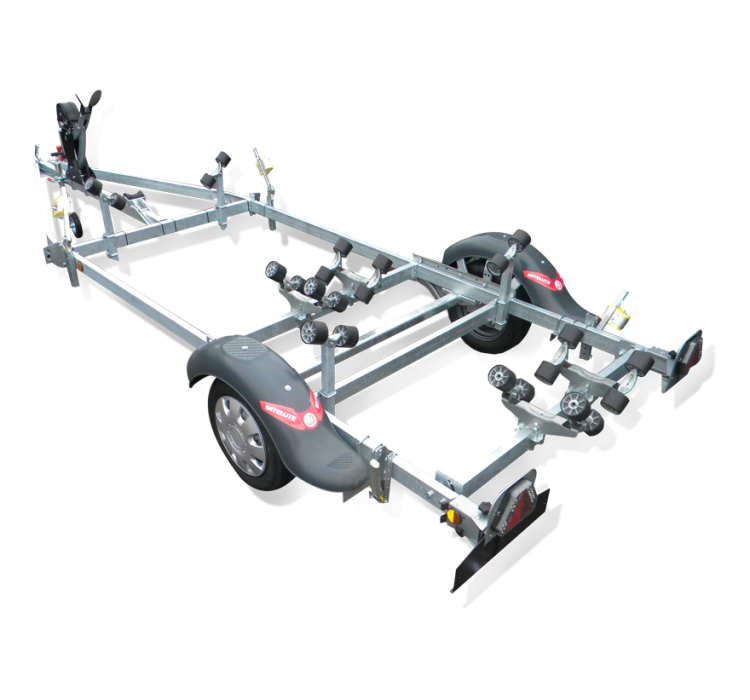

Satellite MX075
All our boat trailers are custom built just for you and your boat. After purchase, one of our experts will contact you to discuss your boat and learn about its specific so that we can adjust boat trailer length, winch stand height and add any special rollers and bow stop material. This does not have an effect on the price.
Your Satellite trailer comes fully equipped, ready to use and includes:
- 2-year maintenance contract: Piece of mind knowing you always have a well-maintained trailer with our maintenance contracts
- Quickflex: The tie-down solution designed for your boat. Easy to use, the Quickflex guarantees your safety. Replace your ratchet straps!
- LED lights: State-of-the-art lights that are waterproof
- Launching system without immersion
- Retractable sliding lights: Easy launching of the boat with retractable and sliding lights
- Goliath TS-winch: Our inhouse designed and manufactured premium winches allowing you to freely unwind the strap to attach your boat to the winch effortlessly.
- Non-braked axle
-
Folding lights
-
Multi length
-
Quickflex docking included
-
Rear tilting frame
Choose Your Product
| Model | Useful load (kg) | GvW (kg) | Axle B/NB | Length (m) | Width (m) | Wheels | Price Goliath-Store* | Action |
|---|---|---|---|---|---|---|---|---|
| M-070-55L55 | 550 | 750 | 1NF | 5,50 m | 1,90m | 155/70 R13 |
€2,223.00 Incl. VAT |
|
| M-070-55L50 | 550 | 750 | 1NF | 5,00 m | 1,90m | 155/70 R13 |
€2,223.00 Incl. VAT |
|
Satellite trailers, dedicated to the transport of boats of up to 3 tons, have been known for their resistance and road qualities for many years. They enjoy numerous innovations and the latest equipment in terms of safety and comfort.
"From the slipway to the road in 5 minutes" concept
Satellite boat trailers are designed to facilitate and secure boat handling operations: the "QuickFlex" tie-down system is set up and removed in the blink of an eye, the traditional lighting board is replaced by sliding lights and the Goliath winch ensures a safe boat handling.
A custom-made trailer
Satellite offers a choice of lengths per GVWR, at no extra cost and without manufacturing delay, providing a trailer whose length and load capacity exactly correspond to your boat. This simplifies and facilitates adjustments, especially when launching. Indeed, a trailer which is too long or too short moves the centre of gravity of the boat (which impacts safety on the road) and complicates launching (which too often requires wheel immersion and damages brakes).
Launching without immersion: durability and safety
Satellite has an optimised launching system. Large diameter rollers help to manage strakes and the cross-member of the tilting rear bogie limits the nose lift of the boat during launching. Launching, including on shallow slipways, is thus facilitated. The immersion of the wheels of a Satellite trailer is limited (below the hub), which increases the longevity of your trailer and improves safety on the road.
The Goliath safety pack protects you
The Goliath winch is fitted on Satellite trailers. Specifically designed for boat handling, it allows the sling to unwind freely; its brake system is automatically engaged when it is required by the boat. A th gear reduces forces on the handle by , you simply have to change the handle from drive shaft. Satellite is fitted with the QuickFlex professional tie-down system (Attachments and tensioners). This very intuitive system is set up in no time. The powerful tensioning is performed in one click, thanks to the Goliath winch handle. The elastomeric slings with a metal core are not extensible. They immobilise the boat in all circumstances and improve road holding, especially when avoiding obstacles, or sudden braking. Please note that it is prohibited to use the winch or its support to tie down the boat.
Order a QuickFlex
An efficient electric system
Indicating components fitted on trailers are important safety elements. Exposure of connectors to marine corrosion very quickly renders the electric system of trailers inoperative, especially the lighting board which is very exposed to repeated handling and sea water. Satellite replaces the rear lighting board with sliding lights. The traditional lighting board is available as an option.
Satellite a well-equipped trailer, designed for your comfort and safety.
- Foldable lights : Folding lights
- Multilength : Multi length
- Quickflex included : Quickflex docking included
- Tilting cross-member : Rear tilting frame
- Type : Multi-Roll Trailers
Why a custom trailer?
The length of the trailer must suit the size of the boat:
For launching without immersion (brake safety and durability) and easier lowering of the boat even on a gentle slope, the boat must be placed as far forward as possible on the trailer so that all the rollers, especially those of the bogie, are uniformly in contact with the widest part of the hull and so that the latter is perfectly horizontal.
For example, moving back the stand by a metre towards the back of the trailer, when it is too big for the boat will limit the contact of the central bogie with the hull and/or will not make it possible to best adjust the side or keel rollers.
For perfect road holding and securing of the boat, its centre of gravity must be perfectly centred.
- The part of the transom resting on the rollers must be positioned downstream the last roller between and
- The winch support stand must be placed between and the small front joiner cross-member, and must be of suitable height.
Axle adjustment
The road holding and stability of the car + trailer set depend, among other things, on the perfect balance of the boat weight on the trailer running gear. This is why the axle position must be adjusted according to each boat. This mandatory service is performed by a professional or the trailer distributor, and cannot be further charged. Our trailers are designed to closely fit the boat length. The axle position is then naturally the best, however the intervention of a professional, even if it is simplified, is still required to finalise adjustment according to the boat.
Une remorque bien réglée exerce un juste effort sur l'attelage du véhicule et favorise tenue de route et qualité du freinage.Launching system adjustment
Each boat has a specific construction. The hull, wetted area and engine vary from one boat to another, and have an impact on the launching quality. An easy launching obviously depends on the roller system, but also, for each boat, on several factors such as the centred position of the boat, the winch and winching line, the fact that the boat remains horizontal during the operation (if possible without immersion) and, finally, the position of the rollers according to the hull strakes.
Our trailers perfectly fit the boat for an optimum launching:- Multiple lengths per each GVW = trailer suitable for the boat (centred).
- Variable winch stand heights = perfect puling line.
- Tilting rear bogie system = helps to keep the boat horizontal (low nose lift when exiting water).
- Roller supports in high strength pressed steel = supports the weight of the boat without incident over time.
A final adjustment of the position of some rollers in relation to the hull is still necessary and will be performed by an authorised professional.
Road safety, lighting, maintenance....
Each boater is responsible for their vehicle, but also for the safety of other users on the road and on the slipway, under the road safety provisions
They must ensure the regular maintenance of the brakes, wheels and indicating lights of their trailer, as well as the compliance of safety devices. Thanks to their design and equipment, our trailers help to ensure your safety both on the road and the slipway, in order to allow you to fully enjoy your leisure activities. How to configure a trailerTo safely transport a boat, some essential rules need to be followed. A boat trailer is far more than a simple trailer. It must meet numerous requirements specific to marine application. The products of our Nautilus, Rocca and Satellite brands benefit from more than years of experience at your service.
European approvals
Each trailer must have a certificate of compliance to travel on European roads. This certificate required by the prefecture to register the trailer mentions its serial number, which will then be transferred on the log book. All our trailers of less than of payload benefit from European approval which guarantees their compliance with road use. The approval defines, for each trailer or trailer type, its construction compliance in accordance with current standards, but also the compliance of the main components such as hitches, wheeled and braking systems, indicating (lights), wheels and fenders, rear underrun protection, etc. Each trailer of a given brand is therefore compliant as long as it is built and maintained with the original components provided for by the approval. To this end, approved original components must absolutely be used to maintain the trailer. Otherwise, the trailer will no longer be compliant with road use or the manufacturer will no longer be held liable. The other safety elements are also governed by European Regulation protecting users. Standards define the design, manufacturing and use conditions which ensure the safety of individuals and the boat. European trailer manufacturers have a legal obligation to comply with these provisions, otherwise they can be held liable.
Winch: European standard EN13157 A1
The standard defines boat handling on a trailer as a lifting operation (lifting by changing horizontal and/or vertical level) and requires, in particular, a permanent safety brake (active in all circumstances when the boat applies tension on the strap), a strap or cable compliant with the Regulation, as well as that the protection of winch pinions and active elements. Our trailers are fitted with the Goliath winch, the only winch on the market providing a free unwinding of the strap (punctual brake neutralisation) and with an automatic safety rearmament device when loaded. This winch benefits, when required by the load, from a double speed to reduce both lifting and lowering forces for more comfort.
We guarantee the compliance of the winch and marking related to it.
Tie-down: Standard EN12195 1-5
Tie-down is mandatory.
- It is the responsibility of the motorist to ensure its compliance, in accordance with road safety.
- It is the responsibility of professionals to provide a solution suitable for the trailer.
The European standard defines the rules for calculating the tie-down compliance of a load on a wheeled vehicle. In principle, tie-down should allow the boat to remain connected to the trailer in all circumstances.
- The tie-down type: a point cross tie-down to fully immobilise the boat (points for rigid boats of less than tonne and tonne for semi-rigid boats).
- The tensile force: to eliminate clearances and the potential movement of the boat.
- Non-elastic straps: to eliminate mass acceleration/increase factor (stress in case of accident).
Our Nautilus, Rocca and Satellite brands are exclusively pre-fitted* with the QuickFlex tie-down system for your safety.
The QuickFlex cross tie-down system is designed to tie down and fit any type of boat up to, in strict compliance with the Regulation. This very intuitive system is set up in the blink of an eye. The powerful tensioning is performed in one click, thanks to the Goliath TS winch handle. The elastomeric straps with a metal core are non extensible. They immobilise the boat in all circumstances, especially when avoiding obstacles or sudden braking, and improve road holding. QuickFlex guarantees the compliance of the boat tie-down with the standard and relieves the user of the standard validation responsibility. QuickFlex conveniently and durably replaces ratchet straps, which are ill-suited, fragile, extensible (up to 70 cm), and whose tensile force is limited, on top of all.
Buy the QuickFlex system
