U series handling trailer
U series handling trailer
Our new U series trailer makes it easier to handle and optimise the storage of motor boats up to 3.6T and 9m. It combines all the advantages of a road trailer and a small hydraulic cradle, at an attractive price.
This hybrid trailer is specially designed for on-site handling (storage/workshop/storage) and for launching and unlaunching boats at the start and end of the season.
Thanks to the U trailer:
- Storage/handling costs: -50%
- Optimised storage area
- Hedging revenue: +50 %
A unic productivity tool on the market
Thanks to this 2-in-1 solution, launch rotations are ultra-fast.

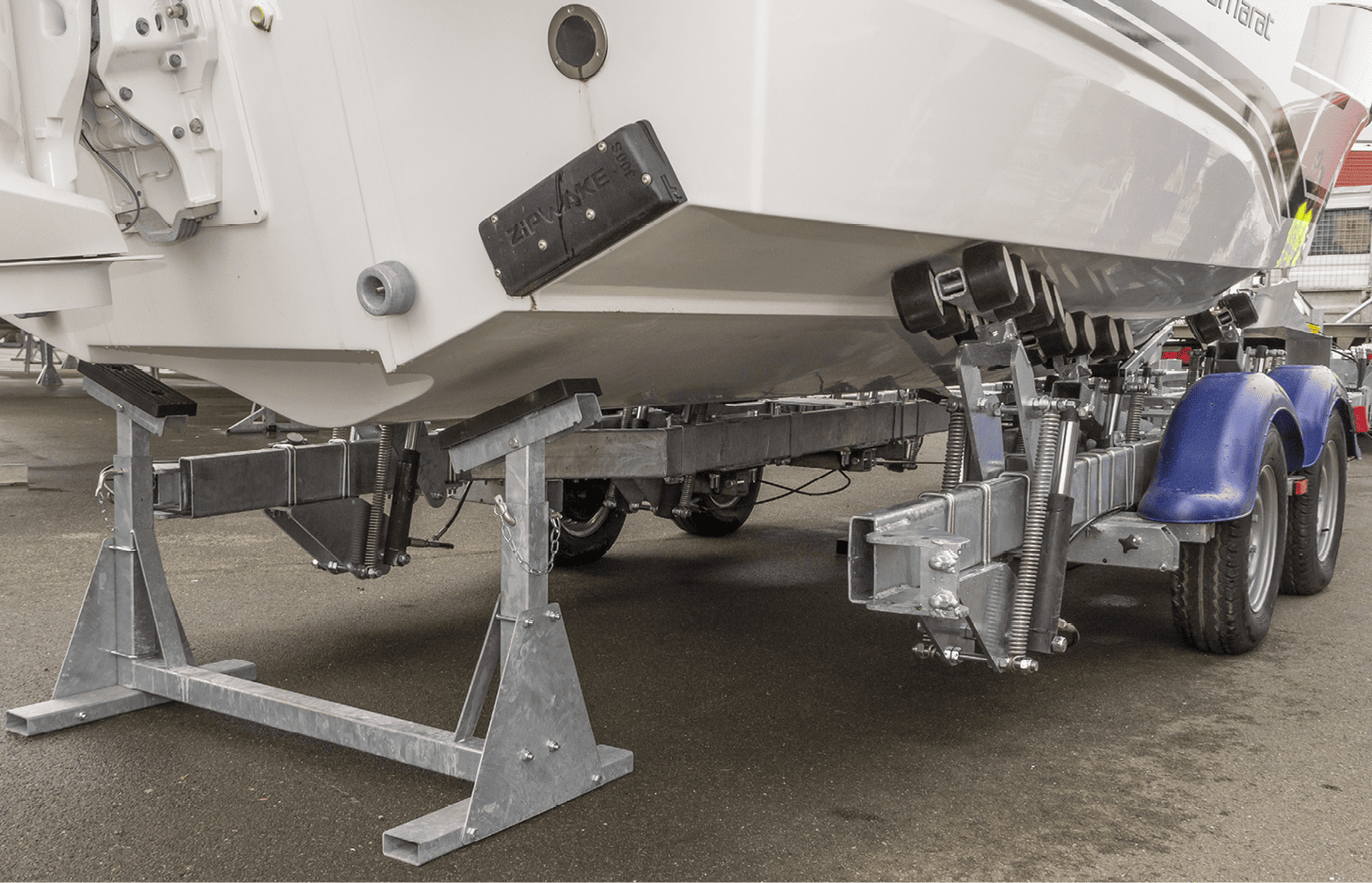

1) The trailer, open at the rear, moves backwards under the boat. The boat rests on 2 special fixed cradle, that the driver positions in the middle of the trailer.

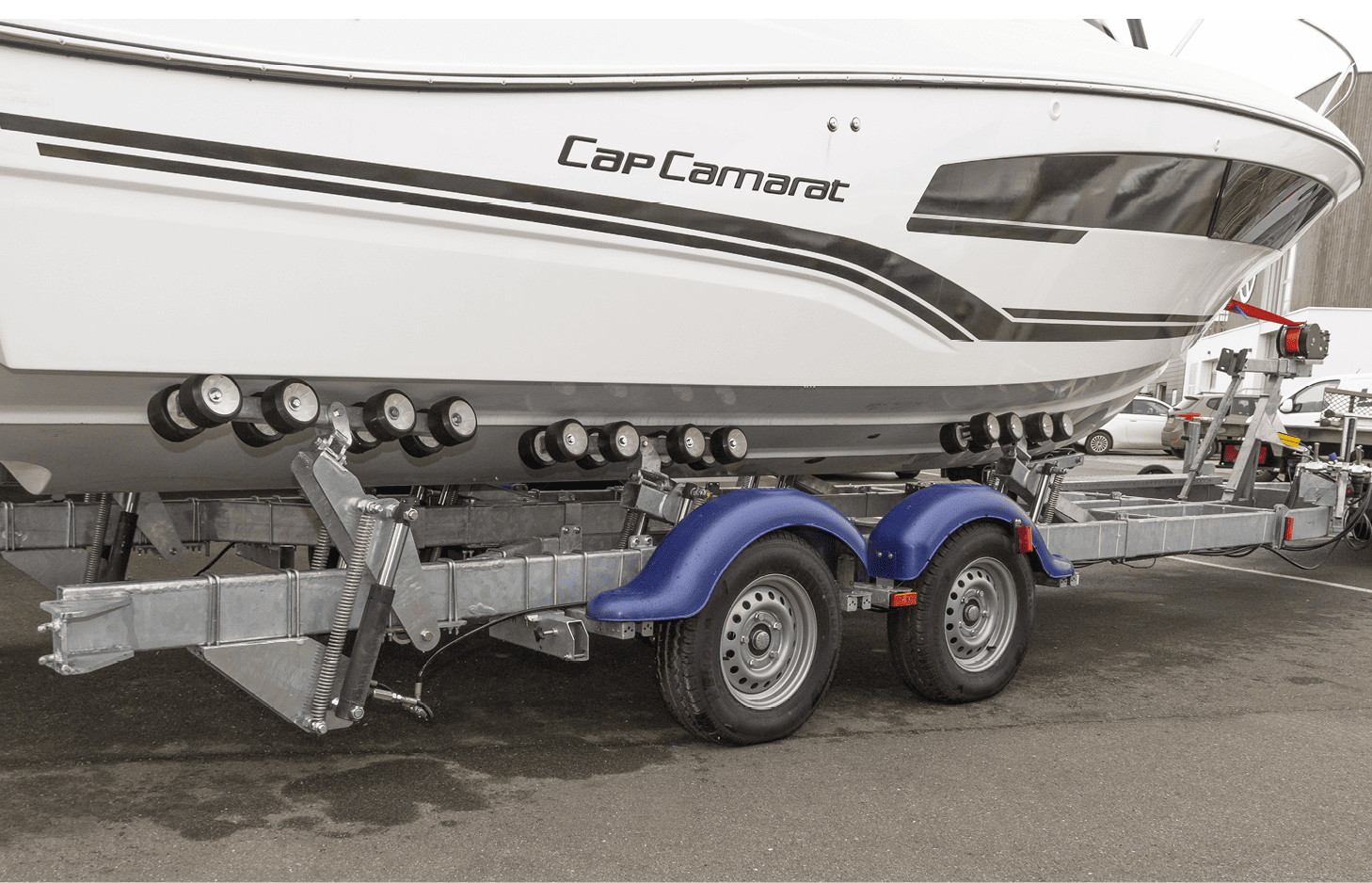

2) The boat comes into contact with 7 rollers mounted on 14 hydraulic cylinders, which lift it by up to 300 mm. The boat can then be winched up to the bow stop.
3) The hitch is ready to set off once the boat has been lashed down and the rear crossbar closed.
Handling time is reduced to a minimum and a maintenance contract is included for 2 years!
U series handling trailer
| Model | Boat length | GVWR | Nb of lifting points | Nbre. de vérins par point | Electro-hydraulic control | Hydraulique stainless steel kit | Standard | Version INOX | Action |
|---|---|---|---|---|---|---|---|---|---|
| U series trailer - 7 m | 5 to 8m | 3.5T | 5 double | 10 | En option | En option | MP-U3.5T | MP-U3.5T INOX | Reseller Personalised Quote |
| U series trailer - 8 m | 5.5 to 9 m | 5T | 7 double | 14 | Inclus | En option | MP-U5T | MP-U3.5T INOX | Reseller Personalised Quote |
