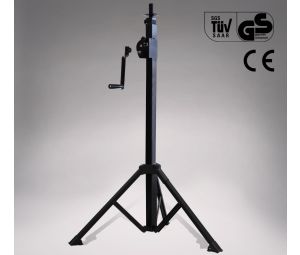

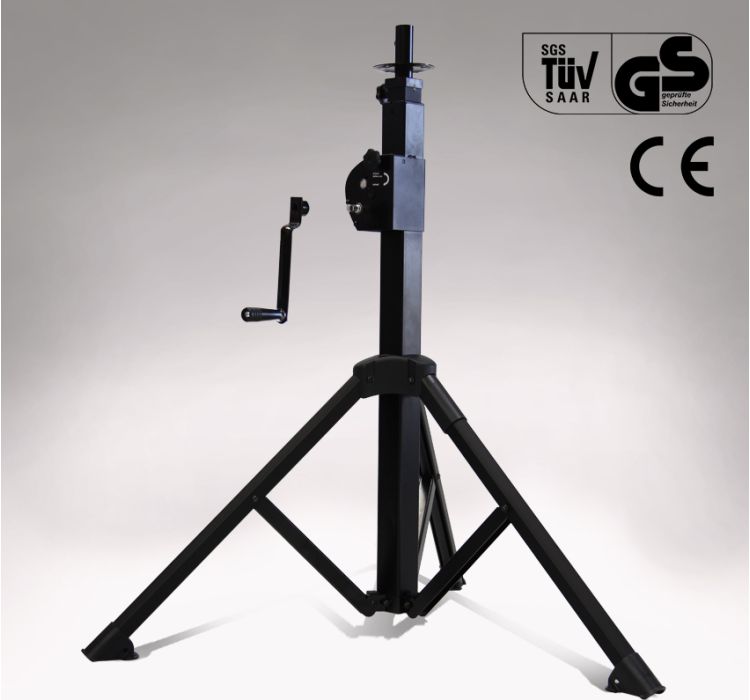

Lifter R2400

R SERIE 2400 3500

A unique and versatile design makes this serie ideal for high end, light & sound, stage lifting requirements:

• R2400 with 100kg loading capacity and 1,07 m loading height will ideally deploy up to 2,4 m a mobile lighting system as well as a heavy speaker.
• R3500 deploys very quickly up to 3,5m up to 100kg worth of load. This multi purpose lifter will fulfill all your needs on stage.



Simple use and total security

The R2400-3500 benefit from a high quality design and manufacturing. 100% aluminum built, the R 2400-3500 are tailor made to handle, with a soft touch your sophisticated light and sound equipments, thanks to their high mechanical efficiency and tight assembly play. The stability foot adjustment is achieved thanks to a simple push button with 6 pre selected positions in replacement of the usual pins.




Stability and "on roll" options

La construction des R 2400-3500 est particulièrement soignée. Réalisés à 100% en aluminium, dotés de systèmes de rattrapage de jeux, et d'une grande précision mécanique, ces pieds de levage sont conçus pour gérer un matériel son et lumière sophistiqué et fragile.

Le réglage de stabilité du pied se fait par simple pression sur un bouton poussoir qui permet de sélectionner 6 positions angulaires, en lieu et place des traditionnelles goupilles.




Stability and "on roll" options

The lifters comes with a foldable tripod foot arangment, exceptionnally stable. The foot end is fitted with a solid shoe to be ground screwed The R2400-3500 can receive as an option a 125 mm wheel system directly attached to the foot, The wheel kit comes with linking cross members to grant the lifter an exceptionnal stability in movement, the lifters come with a transport bag.




Flexible fittings

The lifters are supplied with an adjustable 450 mm extention module with a 35mm end convenient for most accessoiries or speaker hole, The module comes also with an adaptor for 28 mm spigot.
